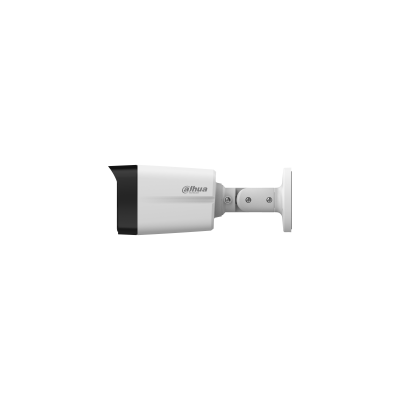

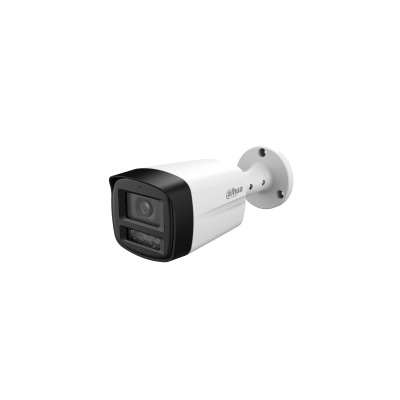

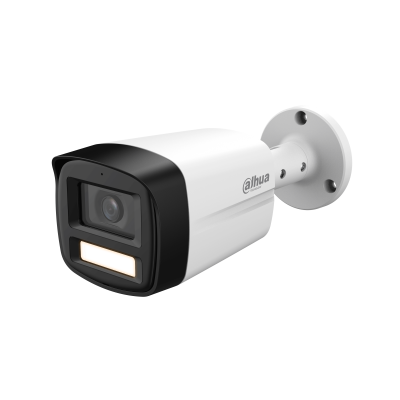

HAC-HFW1239TLM-IL-A new-products 2MP Smart Dual Light HDCVI Fixed-focal Bullet

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s

NTSC: 1/30 s–1/100,000 s

Min. Illumination

0.001 [email protected] (Color, 30 IRE)

0.0001 [email protected] (B/W, 30 IRE)

0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

40 m (131.23 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

4 (Multi-core light)

Angle Adjustment

Pan: 0°–360°

Tilt: 0°–90°

Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.0

Field of View

2.8 mm: H: 101.8°; V: 54.4°; D: 122.1°

3.6 mm: H: 84.2°; V: 45.3°; D: 98.9°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.1 m (3.61 ft)

3.6 mm: 1.6 m (5.25 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

45.6 m

( 149.61 ft)

18.2 m

( 59.71 ft)

9.1 m

( 29.86 ft)

4.6 m

( 15.09 ft)

3.6 mm

55.6 m

( 182.41 ft)

22.2 m

( 72.83 ft)

11.1 m

( 36.42 ft)

5.6 m

( 18.37 ft)

Video

Video Frame Rate

CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;

AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;

TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;

CVBS: PAL: 960H; NTSC: 960H

Resolution

1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; WDR

WDR

130 dB

White Balance

Auto;Area white balance

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

Yes

Illumination Mode

Smart IR&WL; WL Mode; IR Mode

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;

CE-EMC: EN 55032; EN 55035;

Audio

Built-in Mic

Yes

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply

12 VDC ± 30%

Power Consumption

Max 7 W (12 VDC, LED on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IP67

Anti-corrosion Level

Basic Protection

Structure

Casing Material

Metal front cover + plastic rear barrel + metal bracket

Product Dimensions

198.4 mm × 80.2 mm × 76.2 mm (7.81″ × 3.16″ × 3″)

Net Weight

0.31 kg (0.68 lb)

Gross Weight

0.46 kg (1.01 lb)

Installation

Wall mount; ceiling mount; vertical pole mount
