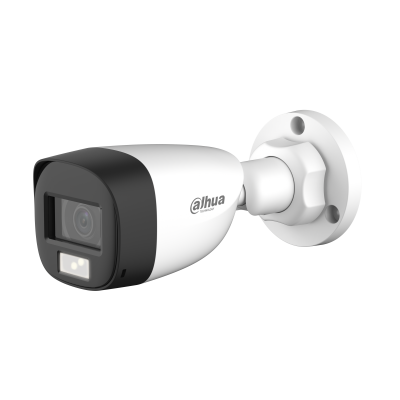

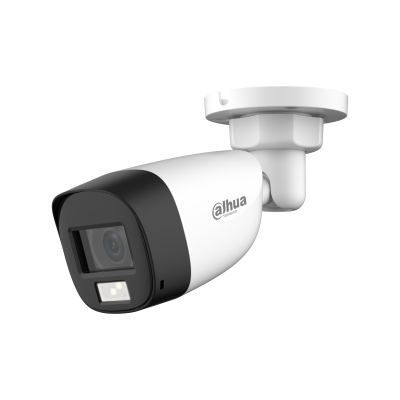

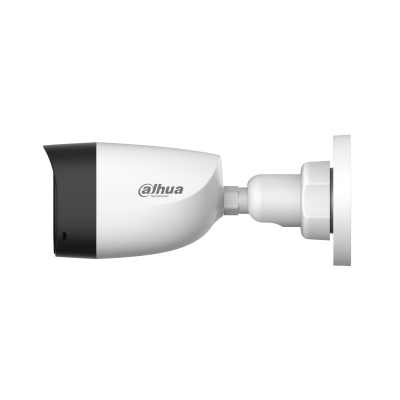

HAC-HFW1200CL-IL-A 2MP Smart Dual Light HDCVI Fixed-focal Bullet Camera

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

Min. Illumination

0.01 [email protected] (Color, 30 IRE)
0.001 [email protected] (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

IR: 20 m (65.62 ft)
Warm light: 20 m (65.62 ft)

Illuminator On/Off Control

Auto

Illuminator Number

2 (Warm light);2 (IR light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Auto Focus

No

Lens Mount

M12

Focal Length

2.8 mm;3.6 mm

Max. Aperture

F2.0

Field of View

2.8 mm: H: 102°; V: 60°; D: 129°
3.6 mm: H: 83°; V: 48°; D: 105°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.5 m (1.64 ft)
3.6 mm: 0.7 m (2.30 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

41.1 m

(135.83 ft)

16.5 m

(42.13 ft)

8.3 m

(27.23 ft)

4.1 m

(13.45 ft)

3.6 mm

50.9 m

(166.99 ft)

20.3 m

(66.60 ft)

10.2 m

(33.46 ft)

5.1 m

(16.73 ft)

Video

Video Frame Rate

CVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; DWDR

WDR

DWDR

White Balance

Auto; Area white balance

Gain Control

Auto

Noise Reduction

3D NR

Illumination Mode

Smart IR&WL; WL Mode; IR Mode

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

1 channel

Power

Power Supply

12 VDC ± 30%

Power Consumption

Max 2.6W (12 VDC, IR on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IP67

Structure

Casing Material

Plastic

Product Dimensions

163.4 mm × 69.7 mm × 70 mm (6.43″ × 2.74″ × 2.76″)

Net Weight

0.18 kg (0.40 lb)

Gross Weight

0.26 kg (0.57 lb)

Installation

Wall mount; ceiling mount; vertical pole mount
