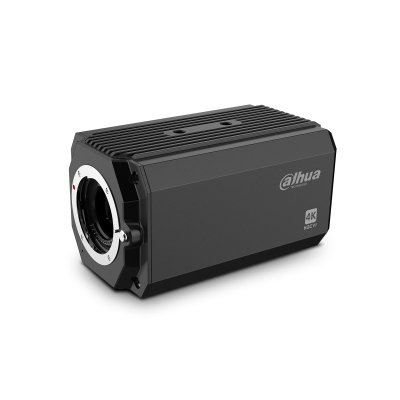

HAC-HF3805G 8MP HDCVI WDR Box Camera

Camera

Image Sensor

4/3″ CMOS

Effective Pixels

3840(H)×2160(V), 8MP

Scanning System

Progressive

Electronic Shutter Speed

1/3s~1/100,000s

Minimum Illumination

0.001Lux/F1.2(Color,1/3s,30IRE)

0.0005Lux/F0.95 (Color,1/3s,30IRE)

0.003Lux/F0.95 (Color,1/30s,30IRE)

0.0003Lux/F0.95 (B/W,1/3s,30IRE)

0.002Lux/F0.95 (B/W,1/30s,30IRE)

S/N Ratio

More than 65dB

IR Distance

NA

IR On/Off Control

NA

IR LEDs

NA

Audio In

Built- in Mic

Lens

Lens Type

External

Mount Type

M43-mount

Focal Length

NA

Max Aperture

NA

Angle of View

NA

Focus Control

N/A

Close Focus Distance

NA

Pan / Tilt / Rotation

Pan/Tilt/Rotation

Pan: NA

Tilt: NA

Rotation: NA

Video

Resolution

8MP (3840×2160)

Frame Rate

PAL:[email protected];4M@25fps

NTSC:4K@15fps;4M@30fps

Video Output

1-channel HDMI video output & 1-channel BNC video output

Day/Night

Auto (Electronic) / Manual

OSD Menu

Multi-language

BLC Mode

BLC / HLC / WDR

WDR

140dB

Gain Control

AGC

Noise Reduction

2D/3D

White Balance

Auto / Manual

Smart IR

NA

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface

Audio Interface

1-channel audio in

Alarm I/O

2/1

Eelectrical

Power Supply

12V DC ±25%/24V AC ±25%

Power Consumption

Max 6.4W (DC12V )

Environmental

Operating Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH

* Start up should be done at above -30°C (-22°F)

Storage Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH

Ingress Protection & Vandal Resistance

NA

Construction

Casing

Aluminium

Dimensions

144.5mm×82mm×73.7mm (5.69″×3.23″×2.90″)

Net Weight

0.62kg (1.36lb)

Gross Weight

0.83kg (1.83lb)
