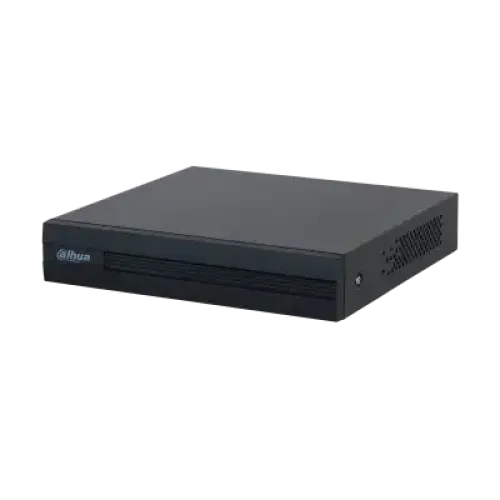

DAHUA DH-XVR1B04-I 4-Channel Digital Video Recorder

Specification

System

Main Processor

Embedded Processor

Operating System

Embedded LINUX

Audio and Video

IP Camera Input

4+1 channels, each channel up to 2MP

Two-Way Talk

Reuse audio in/out, RCA

Display

Interface

1 HDMI; 1 VGA

Resolution

1920 × 1080, 1280 × 1024, 1280 × 720

Multi-Screen Display

When IP extension mode not enabled: 1/4

When IP extension mode enabled: 1/4/6

OSD

Camera title; Time; Video loss; Camera lock; Motion detection; Recording

Recording

Compression

AI Coding/H.265+/H.265/H.264+/H.264

Resolution

1080N; 720p; 960H; D1; CIF

Record Rate

Main Stream: All channels 1080N/720P/960H/D1/CIF/(1~25/30fps)

Sub stream: CIF (1~15 fps)

Bit Rate

32 kbps–4096 kbps per channel

Record Mode

Manual; Schedule (General, Continuous); MD (Video

detection: Motion Detection, Video Loss, Tampering);

Alarm; Stop

Record Interval

1 min– 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s

Video Detection And Alarm

Trigger Event

Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis

Alarm Input

N/A

Relay Output

N/A

Playback And Backup

Sync Playback

1/4

Search Mode

Time/Date; Alarm; MD and rate to second)

Playback Function

Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom

Backup Mode

USB Device/Network

Third Party Support

Third Party Support

Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Network

Interface

1 RJ-45 Port (100 Mbps)

Network Function

HTTP; HTTPS; TCP/IP; IPv4/IPv6; 3G/4G; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.)

Maximum User Access

128 users

Smart Phone

iPhone; iPad; Android

Interoperability

ONVIF 16.12, CGI Conformant

Storage

Internal HDD

1 SATA port, up to 6 TB capacity

eSATA

N/A

Auxiliary Interface

USB

2 USB ports (USB 2.0)

RS232

N/A

RS485

N/A

Power

Power Supply

DC 12 V/1.5 A

Power Consumption

< 7 W

Component Environment

Operational Conditions

–10 °C to +45 °C (+14 °F to +113 °F), 0%–90% (RH)

Storage Conditions

–20 °C to +70 °C (–4 °F to +158 °F), 0%–90% (RH)

Construction

Dimensions

Cooper 1U, 198 mm × 202.9 mm × 41.5 mm (7.81” × 7.99” × 1.63”)

Net Weight

0.57 kg (1.25 lb)

Gross Weight

1.08 kg (2.38 lb)

Warranty

Manufacturing Warranty

1 Year

Description

DAHUA DH-XVR1B04-I 4-Channel Digital Video Recorder

The DAHUA DH-XVR1B04-I Digital Video Recorder features H.265+/H.265 dual-stream video compression. This DVR supports Full channel AI-Coding. It’s easy to preserve all the wonders and excitement you see on TV. It is a stand-alone recorder that captures HDMI videos as you watch them, without the need for a PC. It supports HDCVI/AHD/TVI/CVBS/IP video inputs. It offers Max 5 channels of IP camera inputs, each channel up to 2MP; Max 20 Mbps incoming bandwidth. With an advanced scene-adaptive rate control algorithm, Dahua smart codec technology realizes higher encoding efficiency than H.265 and H.264, provides high-quality video and reduces the cost of storage and transmission. The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation. The DAHUA DH-XVR1B04-I comes with a 1-year warranty.

What is the prices of DAHUA DH-XVR1B04-I Digital Video Recorder in Bangladesh?

The latest price of DAHUA DH-XVR1B04-I Digital Video Recorder in Bangladesh is 2,400৳. You can buy the DAHUA DH-XVR1B04-I Digital Video Recorder at best price from our website or visit any of our showrooms.
