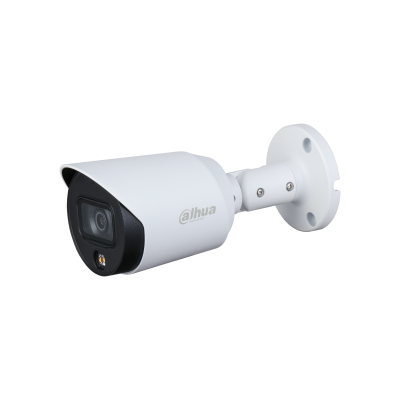

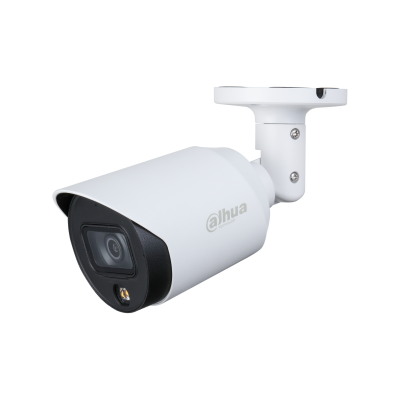

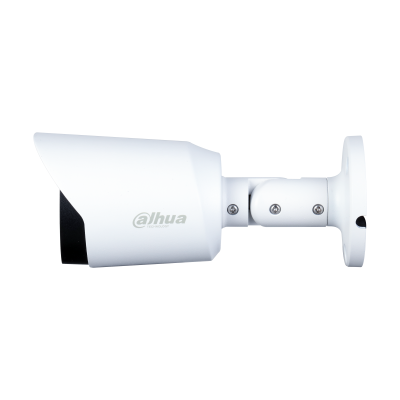

5MP Full-color HDCVI Bullet Camera HAC-HFW2509T-A-LED

Camera

Image Sensor

5MP CMOS

Max. Resolution

2880 (H) × 1620 (V)

Pixel

5MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/3 s–1/100,000 s
NTSC: 1/4 s–1/100,000 s

S/N Ratio

> 65 dB

Min. Illumination

0.0002 Lux/F1.0, 0 Lux warm light on

Illumination Distance

20 m (65.6 ft)

Illuminator On/Off Control

Auto; manual

Illuminator Number

1 (Warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.0

Field of View

2.8 mm: H: 111°; V: 57°; D: 131°
3.6 mm: H: 88°; V: 46°; D: 104°

Iris Type

Fixed iris

Close Focus Distance

2.8 mm: 1.5 m (4.9 ft)
3.6 mm: 2.3 m (7.5 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

66 m

(216.5 ft)

26.4 m

(86.6 ft)

13.2 m

(43.3 ft)

6.6 m

(21.7 ft)

3.6 mm

80 m

(262.5 ft)

32 m

(105 ft)

16 m

(52.5 ft)

8 m

(26.2 ft)

Video

Frame Rate

CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480);

BLC

BLC/HLC/WDR/HLC-Pro

WDR

120 dB

White Balance

Auto; Area white balance

Gain Control

Auto; manual

Noise Reduction

3D NR

Smart Illumination

Yes

Defog

Electronic defog

Digital Zoom

4×

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)

Audio Input

One channel built-in mic

Power

Power Supply

12V ±30% DC

Power Consumption

Max 4.4 W (12 VDC, warm light on)

Environment

Operating Temperature

–40 °C to +60° C (–40 °F to 140 °F); < 95% (non-condensation)

Storage Temperature

–40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-condensation)

Protection Grade

IP67

Structure

Casing

Metal throughout the whole casing

Camera Dimensions

174.5 mm × 72.3 mm × 70.6 mm (6.87″ × 2.85″ × 2.78″)

Net Weight

0.37 kg (0.81 lb)

Gross Weight

0.49 kg (1.08 lb)
